Product Detail

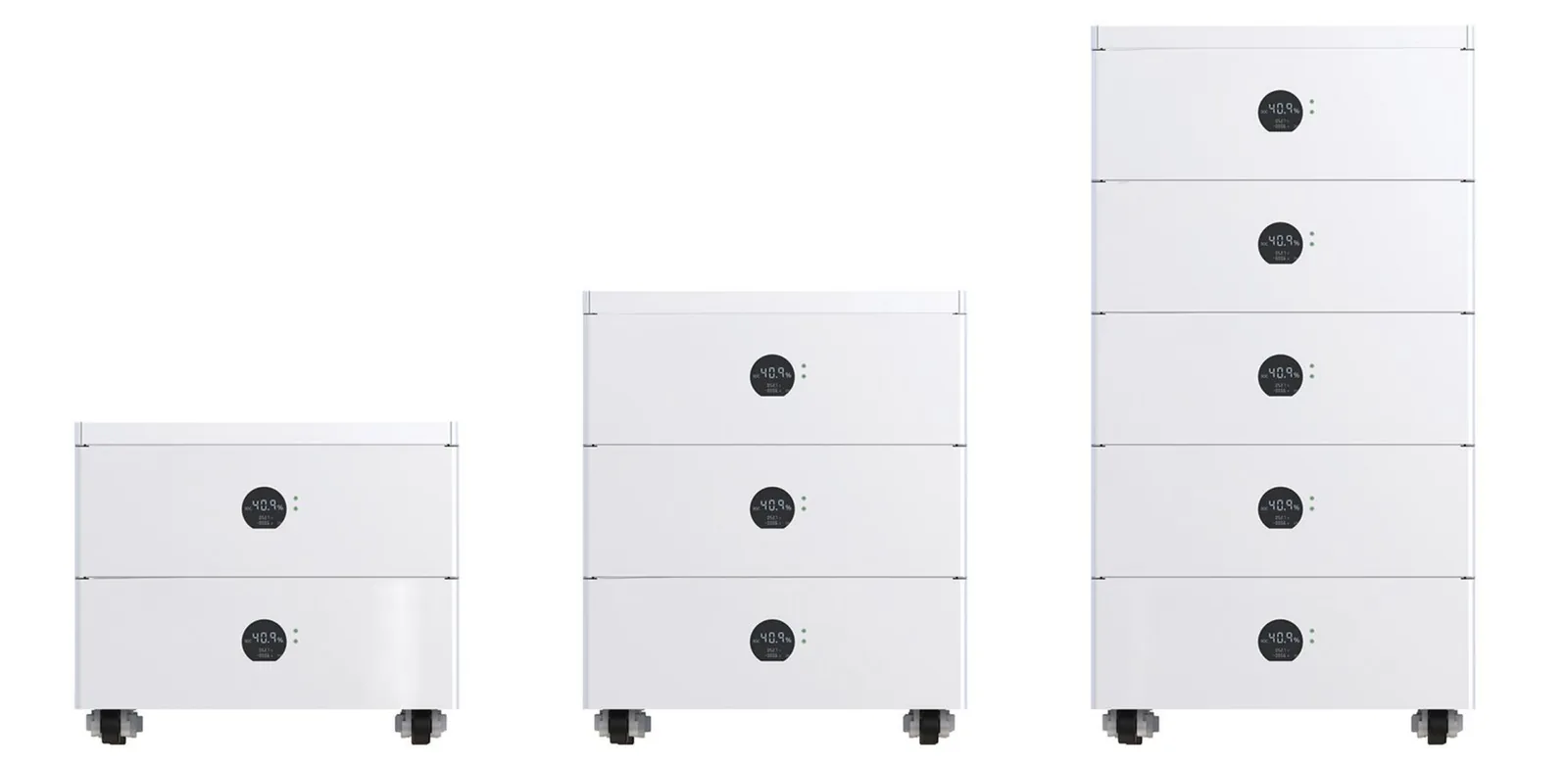

Stacked Lithium Battery Pack for Expandable Energy Storage

Stacked lithium battery pack for residential and small commercial energy storage with flexible capacity expansion.

Stacked Lithium Battery PackProcurement-focused product configuration.
Project ReadyDesigned for smart lighting and clean energy applications.
OEM SupportSpecifications can be matched to project requirements.
Stacked Lithium Battery Pack for Expandable Energy Storage

Stacked Lithium Battery Pack Parameters

MODULE51.2V100AH51.2V100AH51.2V100AH51.2V100AH51.2V100AH
Battery parametersBattery parametersBattery parametersBattery parametersBattery parametersBattery parameters
Nominal Energy(WH)1024015360204802560030720
Nominal Voltage(V)51.251.251.251.251.2
Capacity(AH)100100100100100
Usable Energy(WH)921613824184322304027648
Battery PackHZS-100-16SHZS-100-16SHZS-100-16SHZS-100-16SHZS-100-16S
Cycle Life≥4000@25℃≥4000@25℃≥4000@25℃≥4000@25℃≥4000@25℃
C-Rate0.5C0.5C0.5C0.5C0.5C

Expandable Energy Storage Battery Details

Stacked Lithium Battery Pack image 1
Stacked Lithium Battery Pack image 1

Stacked Lithium Battery Pack Applications and Buying Value

Flexible Capacity Expansion

Stacked lithium battery pack for residential and small commercial energy storage with flexible capacity expansion.

Residential Storage System

Stacked lithium battery pack for residential and small commercial energy storage with flexible capacity expansion.

Small Commercial Backup Power

Stacked lithium battery pack for residential and small commercial energy storage with flexible capacity expansion.

Complete Technical Documentation for Stacked Lithium Battery Pack

Stacked Lithium Battery Pack Complete Content

Stacked Lithium Battery Pack

MODULE51.2V100AH51.2V100AH51.2V100AH51.2V100AH51.2V100AH
Battery parametersBattery parametersBattery parametersBattery parametersBattery parametersBattery parameters
Nominal Energy(WH)1024015360204802560030720
Nominal Voltage(V)51.251.251.251.251.2
Capacity(AH)100100100100100
Usable Energy(WH)921613824184322304027648
Battery PackHZS-100-16SHZS-100-16SHZS-100-16SHZS-100-16SHZS-100-16S
Cycle Life≥4000@25℃≥4000@25℃≥4000@25℃≥4000@25℃≥4000@25℃
C-Rate0.5C0.5C0.5C0.5C0.5C
Cooling MethodAir CoolingAir CoolingAir CoolingAir CoolingAir Cooling
CommunicationRS485/CAN/Bluetooth (Optional)RS485/CAN/Bluetooth (Optional)RS485/CAN/Bluetooth (Optional)RS485/CAN/Bluetooth (Optional)RS485/CAN/Bluetooth (Optional)
Design Life10 years+10 years+10 years+10 years+10 years+
Electrical Design Redundancy>20%>20%>20%>20%>20%
Charge/Discharge StandardCharge/Discharge StandardCharge/Discharge StandardCharge/Discharge StandardCharge/Discharge StandardCharge/Discharge Standard
Discharge Voltage(V)45.645.645.645.645.6
Charge Voltage(V)56.856.856.856.856.8
Recommend Charge/ Discharge Current(A)100150200250300
Max.Charge/ Discharge Current(A)200(3S)300(3S)400 (3S)500(3S)600 (3S)
Operating ConditionsOperating ConditionsOperating ConditionsOperating ConditionsOperating ConditionsOperating Conditions
Operation Temperature0-40℃0-40℃0-40℃0-40℃0-40℃
Storage Temperature-20-70℃-20-70℃-20-70℃-20-70℃-20-70℃
Humidity15%-80%15%-80%15%-80%15%-80%15%-80%
System ParametersSystem ParametersSystem ParametersSystem ParametersSystem ParametersSystem Parameters
Dimensions(W*D*H)mm525*510*415525*510*615525*510*815525*510*1015525*510*1215
Weight(KG)126189252315378
Certification CE/UN38.3/MSDSCertification CE/UN38.3/MSDSCertification CE/UN38.3/MSDSCertification CE/UN38.3/MSDSCertification CE/UN38.3/MSDSCertification CE/UN38.3/MSDS

Need drawings, project pricing or configuration support for Stacked Lithium Battery Pack?

Get Quote
