Product Detail

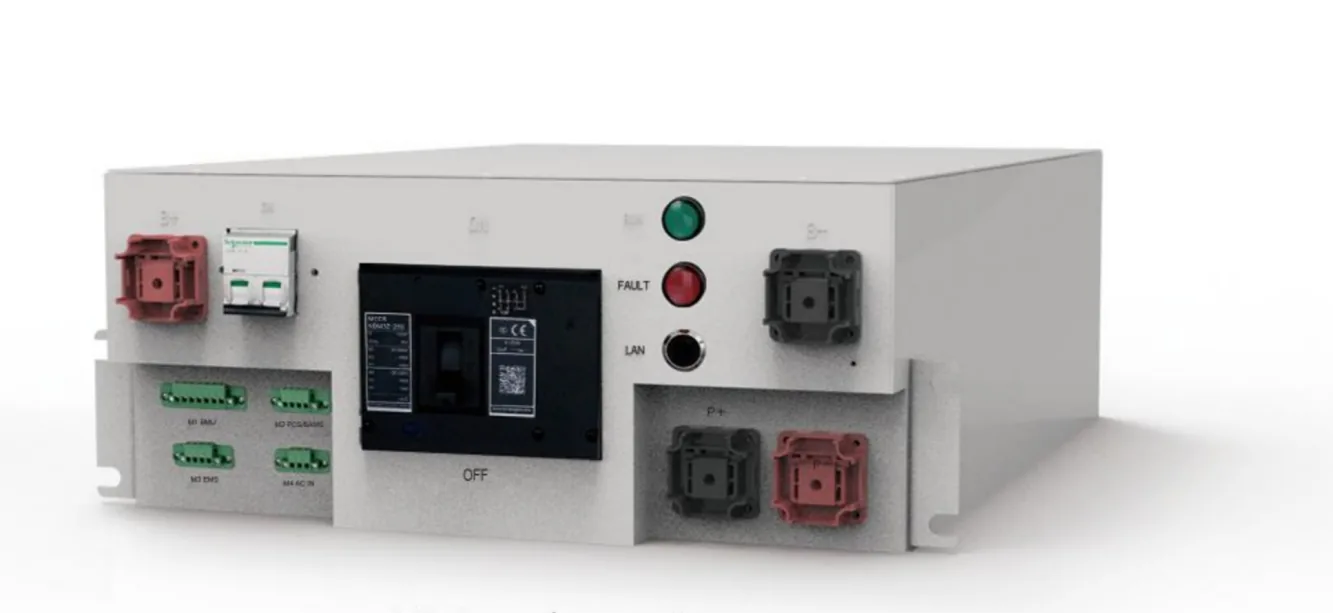

Liquid Cooling High Voltage Lithium Battery Module
Liquid cooling high voltage lithium battery module for thermal stability and reliable commercial energy storage operation.
Liquid Cooling Lithium Battery ModuleProcurement-focused product configuration.
Project ReadyDesigned for smart lighting and clean energy applications.
OEM SupportSpecifications can be matched to project requirements.
Liquid Cooling Lithium Battery Module Parameters
| MODULE | 153.6V280AH | 166.4V314AH |
|---|---|---|
| Battery parameters | Battery parameters | Battery parameters |
| Nominal Energy(WH) | 43008 | 52249.6 |
| Nominal Voltage(V) | 153.6 | 166.4 |
| Capacity(AH) | 280 | 314 |
| Usable Energy(WH) | 38707.2 | 47024.64 |
| Cycle Life | ≥6000@25℃ | ≥6000@25℃ |
| Cooling Method | Lquid Cooling | Lquid Cooling |
| Communication | RS485/CAN | RS485/CAN |
High Voltage Liquid Cooling Battery Details
Liquid Cooling Lithium Battery Module Applications and Buying Value
Thermal Stability
Liquid cooling high voltage lithium battery module for thermal stability and reliable commercial energy storage operation.
Commercial Storage Operation
Liquid cooling high voltage lithium battery module for thermal stability and reliable commercial energy storage operation.
Liquid Cooling Battery Architecture
Liquid cooling high voltage lithium battery module for thermal stability and reliable commercial energy storage operation.
Complete Technical Documentation for Liquid Cooling Lithium Battery Module
Liquid Cooling High Voltage Rack-Mounted Lithium Battery Module Complete Content
Liquid Cooling High Voltage Rack-Mounted Lithium Battery Module
Battery modules
High voltage box
| MODULE | 153.6V280AH | 166.4V314AH |
|---|---|---|
| Battery parameters | Battery parameters | Battery parameters |
| Nominal Energy(WH) | 43008 | 52249.6 |
| Nominal Voltage(V) | 153.6 | 166.4 |
| Capacity(AH) | 280 | 314 |
| Usable Energy(WH) | 38707.2 | 47024.64 |
| Cycle Life | ≥6000@25℃ | ≥6000@25℃ |
| Cooling Method | Lquid Cooling | Lquid Cooling |
| Communication | RS485/CAN | RS485/CAN |
| Design Life | 10 years+ | 10 years+ |
| Charge/Discharge Standard | Charge/Discharge Standard | Charge/Discharge Standard |
| Charge/Discharge Voltage (V) | 136.8-170.4 | 136.8-170.4 |
| Charge/Discharge Current(A) | 140 | 157 |
| Power Consumption(W) | ≤10 | ≤10 |
| Monitoring | System Voltage | System Voltage |
| Monitoring | Cell Voltage | Cell Voltage |
| Monitoring | Cell Temperature | Cell Temperature |
| Monitoring | System Current | System Current |
| Monitoring | SOC | SOC |
| Operating Conditions | Operating Conditions | Operating Conditions |
| Operation Temperature | 0-40℃ | 0-40℃ |
| Storage Temperature | -20-70℃ | -20-70℃ |
| Humidity | 15%-80% | 15%-80% |
| System Parameters | System Parameters | System Parameters |
| Dimensions(W*D*H)mm | 810*1070*250 | 810*1190*250 |
| Weight(KG) | 320 | 340 |
| Certification CE/UN38.3/MSDS | Certification CE/UN38.3/MSDS | Certification CE/UN38.3/MSDS |
Need drawings, project pricing or configuration support for Liquid Cooling High Voltage Module?
