LED Optical Module for Flexible Luminaire Design
LED optical module options for luminaire design, color temperature selection and outdoor lighting applications.
Led Optical ModuleProcurement-focused product configuration.
Project ReadyDesigned for smart lighting and clean energy applications.
OEM SupportSpecifications can be matched to project requirements.
LED Optical Module Parameters for Luminaire Projects
| Model | IJL-LED-M04 |
|---|---|
| LED Beads | LUMILEDS / Other |
| LED Specification | 5050 |
| Color Temperature | 2700K/3000K/4000K/5000K/6500K |
| Operating Environment | -40℃～+50℃, 10%～90%RH |
| Light Distribution Curve | Batwing/60°/120°/Tunnel Use |
| LED Lifetime | 50,000hrs@Ta25℃ |
| System Efficacy | ≥150lm/W |
| System Power | 30W/40W/50W/60W |
LED Source Module Product Details
Led Optical Module Applications and Buying Value
Flexible Luminaire Design
LED optical module options for luminaire design, color temperature selection and outdoor lighting applications.
Optical Distribution Options
LED optical module options for luminaire design, color temperature selection and outdoor lighting applications.
LED Module Integration
LED optical module options for luminaire design, color temperature selection and outdoor lighting applications.
Complete Technical Documentation for Led Optical Module
Specification Table Complete Content
| Model | IJL-LED-M04 |
|---|---|
| LED Beads | LUMILEDS / Other |
| LED Specification | 5050 |
| Color Temperature | 2700K/3000K/4000K/5000K/6500K |
| Operating Environment | -40℃～+50℃, 10%～90%RH |
| Light Distribution Curve | Batwing/60°/120°/Tunnel Use |
| LED Lifetime | 50,000hrs@Ta25℃ |
| System Efficacy | ≥150lm/W |
| System Power | 30W/40W/50W/60W |
| IP Rating | IP68 |
| CRI | ≥Ra70 |
| LED Quantity | 18/28/36pcs |
| Installation Direction | Horizontal/Vertical |
| Model | IJL-LED-M1F |
|---|---|
| LED Beads | LUMILEDS / Other |
| LED Specification | 3030 |
| Color Temperature | 2700K/3000K/4000K/5000K/6500K |
| Operating Environment | -40℃～+50℃, 10%～90%RH |
| Light Distribution Curve | Batwing/30°/60°/120°/Tunnel Use |
| LED Lifetime | 50,000hrs@Ta25℃ |
| System Efficacy | ≥120lm/W |
| System Power | 30W/40W/50W/60W |
| IP Rating | IP68 |
| CRI | ≥Ra70 |
| LED Quantity | 30/40/49/63pcs |
| Installation Direction | Horizontal/Vertical |

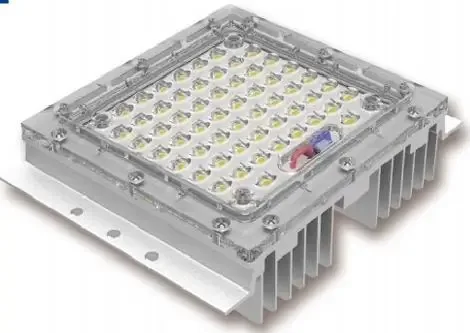

| Model | IJL-LED-M05 |
|---|---|
| LED Beads | LUMILEDS / Other |
| LED Specification | 3030 |
| Color Temperature | 2700K/3000K/4000K/5000K/6500K |
| Operating Environment | -40℃～+50℃, 10%～90%RH |
| Light Distribution Curve | Batwing/90°/120° |
| LED Lifetime | 50,000hrs@Ta25℃ |
| System Efficacy | ≥120lm/W |
| System Power | 30W/40W/50W |
| IP Rating | IP68 |
| CRI | ≥Ra70 |
| LED Quantity | 32/40/56pcs |
| Installation Direction | Horizontal |
| Model | IJL-LED-M06 |
|---|---|
| LED Beads | LUMILEDS / Other |
| LED Specification | 5050 |
| Color Temperature | 2700K/3000K/4000K/5000K/6500K |
| Operating Environment | -40℃～+50℃, 10%～90%RH |
| Light Distribution Curve | Batwing/90°/120° |
| LED Lifetime | 50,000hrs@Ta25℃ |
| System Efficacy | ≥150lm/W |
| System Power | 30W/40W/50W |
| IP Rating | IP68 |
| CRI | ≥Ra70 |
| LED Quantity | 16/20/24pcs |
| Installation Direction | Horizontal |
Need drawings, project pricing or configuration support for LED Optical Module?
